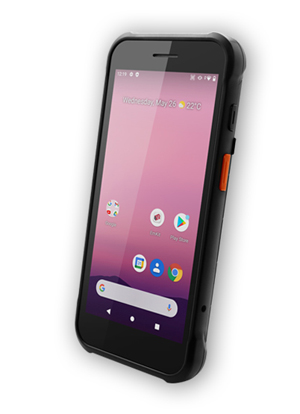

Point Mobile PM-75 PDA Mobile Barcode Scanner

Fast, powerful, and rugged. The PM75 has a light and ergonomic body. The Android device provides a powerful scan engine, comfortable grip, long-lasting battery, and seven-long years of update support.

The Qualcomm 2.0GHz processor runs the device smoothly with the help of 3GB RAM / 32GB ROM (opt. 4GB / 64GB). The PM75 comes with two scan engine options (N3601 or N6603) to match your business needs. The Android 11 operating system offers efficient battery management, easy navigation, and the best data security among any existing mobile operating system.

The bright 5.45in HD+ (720 x 1440 pixels) display helps users to see and control PM75‘s interface without difficulty, even under the sunlight. The device withstands multiple drops to concrete from 1.5m (5ft) height and has an IP65 water/dust resistance rating. The screen features Gorilla Glass.

Add to Cart

Features & Benefits


Onboard Barcode Scanner

Integrated, high-performance 1D laser or 2D Imager barcode scan engine.

High Performance Screen
Full VGA, daylight readable and wide viewing angle display. IPS panel (720 x 1440 pixel) HD+ LED backlight. Daylight readable. Multi-touch capacitive. Corning Gorilla glass

Strong CPU Performance
Qualcomm® Octa-core @2.0GHz processor

Onboard GPS
Qualcomm GPS, GNSS receiver support for GPS & GLONASS

Multiple Wireless Communications
802.11 a/b/g/n/ac/ax (ready)/d/h/i/k /r/v, 1x1 MU-MIMO

Hardened for Industrial Use
IP65 rating. MIL-STD-810G for multiple 1.5m (5ft) drops on concrete over the operating temperature

Industry Standard Operating System
Google Android 11 (upgradable)

Designed for mobile use
Lightweight, ergonomic design ensures comfortable use

Downloads


PM75 Product Brochure

PM-75 Specifications


Physical
Dimensions: With STD battery - 78.0 x 164.8 x 15.2 mm
With EXT battery - 78.0 x 164.8 x 20.8 mm
Weight: With STD battery - 246g
With EXT battery - 299g
SIM Slot: 1 Nano SIM card slot
SD Card Slot: Supports up to 512GB using ExFAT file system
Interface: USB 2.0 Type C OTG Pogo pin 8 and
rear cover pogo pin 6
Battery: STD battery - 3.85V, 2,900mAh Li-ion rechargeable
EXT battery - 3.85V, 5,800mAh Li-ion rechargeable
Display
Display: 5.45" Wide viewing angle
Corning Gorilla glass
Screen Resolution: IPS panel (720 x 1440 pixel) HD+ LED backlight
Touch: Multi-touch capacitive
Nits: Daylight readable (500 Nits)
Performance
Operating system: Android 11 (upgradable)
FOTA (Firmware Over The Air) update
Processor: Qualcomm® Octa-core @2.0GHz
RAM Memory: 3GB / 4GB (optional)
ROM Storage Capacity: 32GB / 64GB (optional)
Communication
WWAN: EDGE/GPRS/GSM - 900/1800/850/1900
WCDMA - B1/2/4/5/6/8/19
LTE FDD - B1/2/3/4/5/7/8/12/13/17/19/20/25/26 /28/66
LTE TDD - B38/39/40/41
WLAN: Radio - IEEE 802.11 a/b/g/n/ac/ax (ready)/d/h/i/k /r/v, 1x1 MU-MIMO Data Rates - 5GHz: 802.11a/n/ac: Up to 433 Mbps 2.4GHz: 802.11b/g/n: Up to 150Mbps
Operating Channels - 1 to 13 (2412~2472MHz) 36 to 165 (5180~5825MHz)
Channel Bandwidth - 20, 40, 80 MHz
Security and Encryption - WEP (40 or 104bit)
WPA/WPA2 Personal (TKIP, AES) WPA/WPA2 Enterprise (TKIP/AES) WPA3 Personal(SAE) WPA3 Enterprise(AES) WPA3 Enterprise 192-bit mode(GCMP 256) Enhanced Open(OWE) PEAP (MSCHAPv2, GTC), TLS, TTLS (PAP, MSCHAP, MSCHAPv2, GTC) PWD, SIM, AKA, AKA', LEAP
Fast Roam - 802.11r
Bluetooth: Integrated Bluetooth Class I, Ver. 5.1 BLE support
GPS: Qualcomm GPS, GNSS receiver support for GPS, GLONASS, and Beidou (Phone SKU)
Data Capture
Barcode Scanner: 1D/2D Barcode Scanner
N3601 or N6603 1D/2D barcode scan engine
Rear Camera: 8MP with LED flash
RFID: Optional
User Environment
IP-rating: IP-65
Droptest: 1.8m
Military Standard: Tested to MIL-STD-810G
Operating Temperature: -20°C to 60℃
Storage Temperature: -25°C to 70°C
Humidity: Non-condensing, 95%
